Stopper 1mm, 350uL, 4 Windows, Round Bottom, HTR, QP4HR01, Air Tight Fluorometer Cuvette
$284 $213
1mm Path Length Fluorometer Cuvette. 350uL Cuvette Volume. PTFE Stopper to Prevent Evaporation. High Transmission and Chemical Compatibility. On Sale!
- Description
- Specifications
- Additional information
- Reviews (3)
Description
| Image Place Holder |
|---|

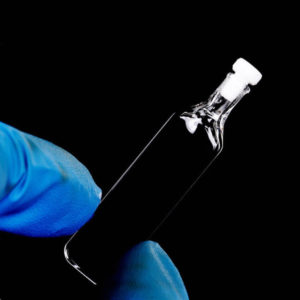

This cuvette is designed with 4 clear windows for use in fluorescence applications. The 4 windows allow measurement of the fluorescence at right angles to the beam path.
The cuvette can be used with 2 optical path lengths: 1mm and 10mm, which makes fluorescence measurements possible for each path length. While this cuvette is designed for use in fluorescence, the through-beam windows can be used independently for other spectroscopic applications.
- Four Clear Windows for Fluorescence Spectroscopy
- PTFE Stopper Included with Each Cuvette for an Airtight Seal
- Fabricated from UV-vis Fused Quartz (190 nm – 2500 nm)
- Dual Path Lengths of 1mm and 10mm
- Door to Door Shipping Worldwide
This cuvette has a 12.5 x 3.5 mm outer dimension and volume 350 µL. The cuvette is designed with PTFE stopper caps for use in airtight sealing (screw cap type is better in sealing) applications. Each cuvette comes with a closed PTFE stopper cap. The PTFE stopper creates an airtight seal to prevent evaporation and atmospheric contamination of the solutions.
Note: The stopper should be inserted gently into the top of the cuvette; excessive force will cause difficulty with removing the stopper.
1mm Dual Path Length Fluorometer Cuvette Specifications
| Part No | QP4HR01 | Inside Width | 10mm |
| Material | Quartz | Transmission | >83% @200nm |
| Cap Type | Screw Cap | Volume | 350ul |
| Windows | 4 Windows | Inner Path | 10mm |
| Manufacturing | HTR* | Outer Size | 45*3.5*12.5mm |
| Bottom | Round | Wavelength | 190-2500nm |
| Path Length | 1mm | Include | Stopper, Cell |
*HTR: High-Temperature Resistant. This type of cuvettes are melt and manufactured as one piece, with extraordinary resistance to high temperature (<1200℃) and corrosive chemicals.
These cuvettes can be used with most popular organic solvents, as well as acids and bases. They are compatible with chemicals such as acetone, butanone, DMF, and concentrated hydrochloric acid.
| Image Place Holder |
|---|
Why Our Cuvettes?
Dual Path Fluorometer Cuvette
Stopper Cap Fluorometer Cuvette
Our Guarantees
| Image Place Holder |
|---|
Additional information
| Weight | 110 g |
|---|---|
| Dimensions | 13 × 10 × 2 cm |
