Micro 10mm, 45uL, 3 Windows, NRC, Glued, Black Walls, SL4B045, Micro Volume Fluorometer Cuvette


Image Place Holder

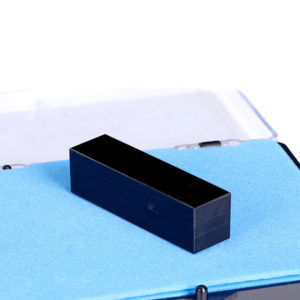

45 uL sub-micro cuvette 3 clear windows for fluorescence measurements. The self-masking type has black walls and bottom plate to absorb all direct and scattered light, and for improved sensitivity. The standard 10mm path length and outer size 12.5 x 12.5 x 45 mm make the cuvette compatible with most fluorometers.

The cuvette top is flared to assist in easy filling. The quartz material has a high transmission of 80%. This fluorescence cuvette is usable in UV and visible wavelength range. Z dimension is 15 mm.

  • Three Clear Windows for Fluorescence
  • Great For DNA, RNA and Protein Micro Samples
  • Path Length 3×3 mm, Z dimension 15 mm
  • PTFE Lid Included with Each Cuvette
  • Door to Door Shipping Duty Unpaid (DDU) Worldwide
45uL Black Wall Micro Quartz Cuvette with 3x5mm Window

Sub-Micro Volume Black Wall Cuvette

45uL Black Wall Micro Quartz Cuvette Size
Part No SL4B045 Window Size  3×5 mm
Material Quartz Transmission 80% @220nm
Cap Type PTFE Lid Volume 45uL
Windows 3 Windows Inner Path 3×3 mm
Manufacturing NRC* Outer Size 45 x 12.5 x 12.5 mm
Z dimension 15 mm Wavelength 190 – 2500nm
Path Length 3×3 mm Include PTFE Lid, Cell

*NRC: Non-Resistant To Chemicals. This type of cuvette is assembled with glue. Great for DNA, RNA, and protein micro samples.

  • Note: Please note that these NRC cuvettes should not be used with benzene, toluene, aqua regia, ethanol, corrosive solutions, or other similar substances, as they may degrade the bonds between the pieces and cause the cuvette to leak. DO NOT rinse the cuvette with ethanol or similar solutions for cleaning.
Image Place Holder
Image Place Holder

Why Our Cuvettes?

Exceptional Accuracy

Optical Path Length and Parallelism are Exceptional Accurate.

Chemical Resistance

Non-Resistant To Chemicals. Great for DNA, RNA, and protein micro samples.

Guaranteed Transmission

Guaranteed 80% From 190nm up to 2500nm of the Quartz Material.

Proven Accuracy

Guaranteed Precision of Pair Difference of 0.5%.
45uL Black Wall Micro Quartz Cuvette for Fluorescence
20ul Ultra Small Volume 3 Window Cuvette for Fluorescence

Bulk Order Discounts

Bulk discounts available. Please consult our team.

Clear Upfront Pricing

Simple and secure online payment by Stripe, Paypal or Bank Transfer.

POs Accepted

Purchase Orders (POs) are Accepted for Universities and Institutions. Pay after Ship.

Custom Design

Tailor in Sizes or Materials. Create your own Custom Cuvette with us.

Our Guarantees

Worldwide Shipping

We ship orders to anywhere in the world. Door to Door Duty Unpaid (DDU).

Fast Secure Dispatch

Rapid dispatch on in-stock items via secure tracked courier services.

Breakage Replacement

Breakage by shipment will be replaced by new delivery F.O.C or refund on request.

Expert Live Support

We are always ready to help. Emails are usually replied in 8 hours. Live Chat Now!
Image Place Holder

Additional information

Weight 110 g
Dimensions 13 × 10 × 2 cm
