Special 6mm, 0.54mL, 2 Windows, Flat Bottom, QL2CR06, 2 Clear Window Quartz Cuvette

Hot

Special 6mm, 0.54mL, 2 Windows, Flat Bottom, QL2CR06, 2 Clear Window Quartz Cuvette

$19$26 $19$25

7 x 8 x 27 mm non standard cuvette. 6 mm path length, 0.54 mL cuvette volume. 2 clear windows for absorption use. 3 types for selection.

  • NRC
  • CRF-F
  • CRF-R
Clear
This product has a minimum order quantity of 2

Description

Image Place Holder

This cuvette is designed with 2 clear windows for use in absorption spectroscopy experiments, and two frosted sides for easy handling. This type of cuvette is not appropriate for use in fluorescence spectroscopy where it is necessary to have four polished windows. Cuvettes with four polished sides here.

The fused quartz material has a transmission of  80%. The cuvette is usable in UV and visible wavelength range. 6mm path length and 7 x 8 x 27 mm outer dimension.

  • Two Clear Windows for Spectrophotometers
  • Fabricated from UV-vis Fused Quartz (190 nm – 2500 nm)
  • Optical Path Length of 6mm
  • Door to Door Shipping Duty Unpaid (DDU) Worldwide
6mm Path Length Special Cuvette Size

6mm Path Length Quartz Cuvette

6mm Path Length 0.54mL Special Cuvette
Part No Inside Width 7mm
Material Quartz Transmission 80% @200nm
Cap Type Volume 0.54 ml
Windows 2 Windows Inner Path 6 x 7 mm
Manufacturing NRC / CRF* Outer Size 7 x 8 x 27 mm
Bottom Round/Flat Wavelength 190 – 2500nm
Path Length 6mm Include Cell

*CRF: Chemical Resistant Fused. Bestseller! This type of cuvettes is resistant to most organic solvents, acids, and bases. However, it has a chance to be stained by some chemicals to the bonding edges.

  • Note: please don’t use the CRF cuvette to store chemicals for a long time. Clean it after use.

*NRC: Non-Resistant To Chemicals. This type of cuvette is assembled with glue.

  • Note: Please note that these NRC cuvettes should not be used with benzene, toluene, aqua regia, ethanol, corrosive solutions, or other similar substances, as they may degrade the bonds between the pieces and cause the cuvette to leak. DO NOT rinse the cuvette with ethanol or similar solutions for cleaning.
Image Place Holder
Image Place Holder

Why Our Cuvettes?

Exceptional Accuracy

Optical Path Length and Parallelism are Exceptional Accurate.

Chemical Resistance

Very High-Temperature Stability (1200℃, CRF) and Chemical Resistance (CRF).

Guaranteed Transmission

Guaranteed 80% From 190nm up to 2500nm of the Quartz Material.

Proven Accuracy

Guaranteed Precision of Pair Difference of 0.5%.

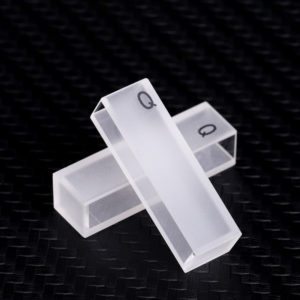

6mm Path Length Special Cuvette
6mm Path Length Special Cuvette Chemical Resistant

Bulk Order Discounts

Save 5% on orders over $3,000.00 and 8% on orders over $5,000.00.

Clear Upfront Pricing

Simple and secure online payment by Stripe, Paypal or Bank Transfer.

POs Accepted

Purchase Orders (POs) are Accepted for Universities and Institutions. Pay after Ship.

Custom Design

Tailor in Sizes or Materials. Create your own Custom Cuvette with us.

Our Guarantees

Worldwide Shipping

We ship orders to anywhere in the world. Door to Door Duty Unpaid (DDU).

Fast Secure Dispatch

Rapid dispatch on in-stock items via secure tracked courier services.

Breakage Replacement

Breakage by shipment will be replaced by new delivery F.O.C or refund on request.

Expert Live Support

We are always ready to help. Emails are usually replied in 8 hours. Live Chat Now!
Image Place Holder

Additional information

Weight 19 g
Dimensions 13 × 10 × 2 cm
Type

NRC, CRF-F, CRF-R
