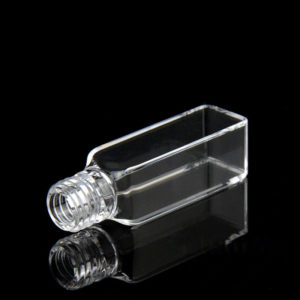

Screw 10mm, 3mL, 4 Windows, Cuvette Size: 12x12x48mm, HTR, QS4HR12, Short, for Fluorometers
$302 $221
Short height quartz cuvette size external: 12 x 12 x 48 mm, path length: 10 mm. Screw cap for best sealing, ideal for anaerobic experiments. Ships worldwide.
- Description
- Specifications
- Additional information
- Reviews (3)
Description
This cuvette size is shorter and smaller than the normal screw cap cuvette. The total height of the cuvette QS4HR12 is 48mm while the normal size is 56-60mm, the base size is 12 x 12mm while the standard type is 12.5 x 12.5mm. More information about standard type screw cuvette check QS4HR.
This quartz fluorometer cuvettes are available as a solid-top screw-cap with PTFE/silicone septa or a 2mm open-top (on request) screw-cap with PTFE/silicone septa for ease of needle injection. The cuvette is 4 clear windows and the bottom is round.
- Solid and open-top (on request) screwcap styles
- Protect air-sensitive samples
- Prevent evaporation and contamination
- Avoid potential spills and exposure to chemical
The cuvette is designed with septa screw caps for use in anaerobic or long-term storage applications. Each cuvette comes with a closed screw cap or an open screw cap.
This cuvette is our standard type and is a premium choice among researchers who perform anaerobic work. The open septa screw cap enables researchers to make sterile injections into the cuvette without compromising the experiment.
10mm Custom Height and Bottom Cuvette Size
Part No | QS4HR12 | Inside Width | 10mm |
Material | Quartz | Transmission | >83% @200nm |
Cap Type | Screw Cap | Volume | 3ml |
Windows | 4 Windows | Inner Path | 10mm |
Manufacturing | HTR* | Cuvette Size | 48*12*12mm |
Bottom | Round | Wavelength | 190-2500nm |
Light Path | 10mm | Include | Cap, Septa, Cell |
*HTR: High-Temperature Resistant. This type of cuvettes are melt and manufactured as one piece, with extraordinary resistance to high temperature (<1200℃) and corrosive chemicals.
These cuvettes can be used with most popular organic solvents, as well as acids and bases. They are compatible with chemicals such as acetone, butanone, DMF, and concentrated hydrochloric acid.
Why Our Quartz Cuvettes?
It’s not necessary to always use quartz cuvettes and it depends on the wavelength range you are targeting. Quartz cuvettes have a high transmission rate (80% or higher) @ UV wavelength range while Optical Glass or Plastic (PS or PMMA) reflects the light.
Cuvette Designed for Anaerobic Work
Screw Cap with 2mm Center Hole
This type of 4 window cuvettes is designed with screw caps for use in anaerobic or long-term storage applications. The order package includes 1pc cap, 1 pc PTFE/silicone liner and the cuvette cell.
Our Guarantees
Additional information
Weight | 110 g |
---|---|
Dimensions | 13 × 10 × 2 cm |
Screw Cap Variants | open-top, solid-top |
