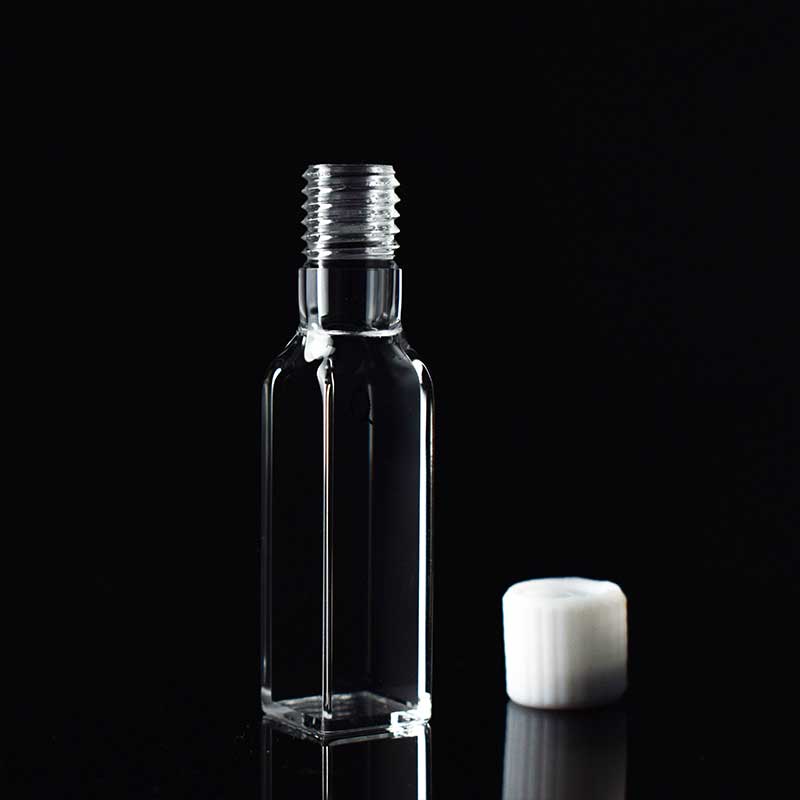

Name: Screw 10mm Cuvette, 3.5mL, 4 Windows, Flat Bottom, HTR, QS4HF, For Fluorescence, Quartz (1pc/ea) | QS4HF
SKU: QS4HF
Price: 204 USD
Availability: InStock

Hot

optical path length screw quartz cuvette 1

Screw 10mm Cuvette, 3.5mL, 4 Windows, Flat Bottom, HTR, QS4HF, For Fluorescence, Quartz (1pc/ea) - Image 1

Screw 10mm Cuvette, 3.5mL, 4 Windows, Flat Bottom, HTR, QS4HF, For Fluorescence, Quartz (1pc/ea)

0 out of 5

( There are no reviews yet. )

Original price was: $204.Current price is: $163.

PTFE/Silicone Liner for Excellent sealing,
10mm Cuvette Path Lenght, 3.5mL Volume,
Resistant to High Temperature,
Resistant Organic Chemicals,
Very Low Pair Variations,
High Transmission >83%.

SKU: QS4HF Categories: Fluorometer Cuvettes, 10mm Cuvettes, Cuvettes and Cells, Cuvettes by Materials, Cuvettes by Path Length, Cuvettes by Shapes, Cuvettes by Volume, Products, Quartz Cuvettes, Screw Cap Cuvettes, Standard Volume Cuvettes (3.5mL), Standard Volume Cuvettes (3.5mL) Tags: 10mm cuvette, fluorometer cuvette, screw cap cuvette, uv-vis cuvette

Add to wishlist

Description
Specifications
Additional information
Reviews (0)

Description

The difference between the standard 10mm cuvette QS4HF and QS4HR is the bottom. QS4HR is round bottom while QS4HF is flat. QS4HR is cheaper in price.

This quartz fluorometer cuvettes are available as a solid-top screw-cap with PTFE/silicone septa and an 2mm open-top screw-cap with PTFE/silicone septa for ease of needle injection. The cuvettes are 4 clear windows and flat bottom. Fits all standard fluorometers.

Solid and open-top screw cap styles
Protect air-sensitive samples
Prevent evaporation and contamination
Avoid potential spills and exposure to chemicals
Cuvette height customizable to within 50mm or shorter

This type of fluorometer cuvettes with septa screw caps for use in anaerobic or long-term storage applications. Each cuvette comes with a closed screw cap or an open screw cap with a septa self-healing injection site.

This cuvette is our standard 10mm screw cap cell and is a favorite selection among scientists who perform anaerobic work. The open septa screw cap enables researchers to make sterile injections into the cuvette without compromising the experiment.

10mm Quartz Screw Cap Cuvette Specifications - Flat Bottom

Part No	QS4HF	Inside Width	10mm
Material	Quartz	Transmission	>83% @200nm
Cap Type	Screw Cap	Volume	3.5ml
Windows	4 Windows	Inner Path	10mm
Manufacturing	HTR*	Outer Size	6012.512.5mm
Bottom	Flat	Wavelength	190-2500nm
Light Path	10mm	Include	Cap, Septa, Cell

*HTR: High-Temperature Resistant. This type of cuvettes are melt and manufactured as one piece, with extraordinary resistance to high temperature (<1200℃) and corrosive chemicals. The cuvette package includes 1pc cap, 1 pc PTFE/silicone liner and the cuvette cell.

These cuvettes can be used with most popular organic solvents, as well as acids and bases. They are compatible with chemicals such as acetone, butanone, DMF, and concentrated hydrochloric acid.

Why Our Quartz Cuvettes?

It’s not necessary to always use quartz cuvettes and it depends on the wavelength range you are targeting. Quartz cuvettes have a high transmission rate (80% or higher) @ UV wavelength range while Optical Glass or Plastic (PS or PMMA) reflect the light.
