Stopper 10mm, 3.5mL, 2 Windows, Standard Type, Round Bottom, QP2HR, Spectrophotometer Quartz Cuvette
$30 – $119 $29 – $114
Standard 10mm Path Length Quartz Cuvette, 3.5mL. Use with Spectrophotometers and High Requirement Experiments. Bestseller! 1 Day Shipping!
- Description
- Specifications
- Additional information
- Reviews (18)
Description
| Image Place Holder |
|---|
This standard quartz cuvette is designed with 2 clear windows for use in absorption spectroscopy experiments, and two frosted sides for easy handling. This type of cuvette is not appropriate for use in fluorescence spectroscopy where it is necessary to have four polished windows. Cuvettes with four polished sides here.
The fused quartz material has a transmission of 83% (CRF-H & HTR) or 80% (NRC & CRF). The cuvette is usable in UV and visible wavelength range. 10mm standard path length and 12.5 x 12.5 mm outer size make the cuvette suitable for most spectrophotometers.
- Two Clear Windows for Spectrophotometers
- PTFE Stopper Included with Each Cuvette for an Airtight Seal
- Fabricated from UV-vis Fused Quartz (190 nm – 2500 nm)
- Standard Optical Path Length of 10mm
- Door to Door Shipping Duty Unpaid (DDU) Worldwide
This cuvette has a 12.5 x 12.5 x 45mm outer dimension and a volume of 3.5 mL. The cuvette is designed with PTFE stopper caps for use in airtight sealing (screw cap type is better in sealing) applications. Each cuvette comes with a closed PTFE stopper cap. The PTFE stopper creates an airtight seal to prevent evaporation and atmospheric contamination of the solutions.
Note: The stopper should be inserted gently into the top of the cuvette; excessive force will cause difficulty with removing the stopper.
10mm Standard Quartz Cuvette Specifications
| Part No | – | Inside Width | 10mm |
| Material | Quartz | Transmission | 80% or 83% @200nm |
| Cap Type | PTFE Stopper | Volume | 3.5ml |
| Windows | 2 Windows | Inner Path | 10mm |
| Manufacturing | NRC / CRF / HTR* | Outer Size | 45 x 12.5 x 12.5mm |
| Bottom | Round | Wavelength | 190 – 2500nm |
| Path Length | 10mm | Include | Stopper, Cell |

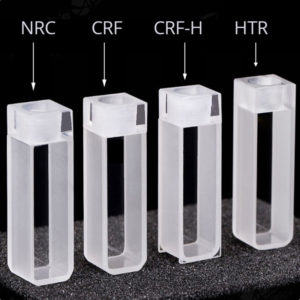

*HTR: High-Temperature Resistant. Highest quality for advanced experiments. This type of cuvettes are melt and manufactured as one piece, with extraordinary resistance to high temperature (<1200℃) and corrosive chemicals. Transmission is 83% over. Zero data reading variation is available on request (default <0.3%) for 2 or more pieces.
- Note: These HTR cuvettes can be used with most popular organic solvents, as well as acids and bases. They are compatible with chemicals such as acetone, butanone, DMF, and concentrated hydrochloric acid.
*CRF: Chemical Resistant Fused. Bestseller! This type of cuvettes is resistant to most organic solvents, acids, and bases. However, it has a chance to be stained by some chemicals to the bonding edges. It’s a cheaper alternative to the HTR type. CRF-H has a higher transmission (83% v.s. 80%) than CRF and the same transmission with HTR.
- Note: please don’t use the CRF cuvette to store chemicals for a long time. Clean it after use.
*NRC: Non-Resistant To Chemicals. This type of cuvette is assembled with glue.
- Note: Please note that these NRC cuvettes should not be used with benzene, toluene, aqua regia, ethanol, corrosive solutions, or other similar substances, as they may degrade the bonds between the pieces and cause the cuvette to leak. DO NOT rinse the cuvette with ethanol or similar solutions for cleaning.
| Image Place Holder |
|---|
| Image Place Holder |
|---|
Why Our Cuvettes?
Standard 10mm Spectrophotometer Cuvette
1cm Spectrometer Quartz Cuvette
Our Guarantees
| Image Place Holder |
|---|
Additional information
| Weight | 110 g |
|---|---|
| Dimensions | 13 × 10 × 2 cm |
| Type | NRC, CRF, CRF-H, HTR |
